CPDS in Python Lab - Real Dataset Analysis with Pandas, NumPy and Matplotlib

UCI Air Quality Dataset

Dataset: UCI Machine Learning Repository - Air Quality
https://archive.ics.uci.edu/dataset/360/air%2Bquality

The UCI dataset contains hourly averaged measurements from an air-quality multisensor device deployed in an Italian city. The measurements were collected from March 2004 to February 2005.

In the original dataset, the value -200 represents a missing observation.

Obtain the real dataset

Question 1

Import:

Pandas as pd,
NumPy as np,
Matplotlib pyplot as plt.

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt

Question 2

Download the official UCI Air Quality ZIP file and extract AirQualityUCI.csv.

Then read the CSV file into a DataFrame called df.

The original CSV uses:

; as the separator,
, as the decimal symbol.

df = pd.read_csv("AirQualityUCI.csv",sep=";",decimal=",")

df

---------------------------------------------------------------------------
FileNotFoundError                         Traceback (most recent call last)
/tmp/ipykernel_609/1420193718.py in <cell line: 0>()
----> 1 df = pd.read_csv("AirQualityUCI.csv",sep=";",decimal=",")
      2
      3 df

/usr/local/lib/python3.13/dist-packages/pandas/io/parsers/readers.py in read_csv(filepath_or_buffer, sep, delimiter, header, names, index_col, usecols, dtype, engine, converters, true_values, false_values, skipinitialspace, skiprows, skipfooter, nrows, na_values, keep_default_na, na_filter, verbose, skip_blank_lines, parse_dates, infer_datetime_format, keep_date_col, date_parser, date_format, dayfirst, cache_dates, iterator, chunksize, compression, thousands, decimal, lineterminator, quotechar, quoting, doublequote, escapechar, comment, encoding, encoding_errors, dialect, on_bad_lines, delim_whitespace, low_memory, memory_map, float_precision, storage_options, dtype_backend)
   1024     kwds.update(kwds_defaults)
   1025
-> 1026     return _read(filepath_or_buffer, kwds)
   1027
   1028

/usr/local/lib/python3.13/dist-packages/pandas/io/parsers/readers.py in _read(filepath_or_buffer, kwds)
    618
    619     # Create the parser.
--> 620     parser = TextFileReader(filepath_or_buffer, **kwds)
    621
    622     if chunksize or iterator:

/usr/local/lib/python3.13/dist-packages/pandas/io/parsers/readers.py in __init__(self, f, engine, **kwds)
   1618
   1619         self.handles: IOHandles | None = None
-> 1620         self._engine = self._make_engine(f, self.engine)
   1621
   1622     def close(self) -> None:

/usr/local/lib/python3.13/dist-packages/pandas/io/parsers/readers.py in _make_engine(self, f, engine)
   1878                 if "b" not in mode:
   1879                     mode += "b"
-> 1880             self.handles = get_handle(
   1881                 f,
   1882                 mode,

/usr/local/lib/python3.13/dist-packages/pandas/io/common.py in get_handle(path_or_buf, mode, encoding, compression, memory_map, is_text, errors, storage_options)
    871         if ioargs.encoding and "b" not in ioargs.mode:
    872             # Encoding
--> 873             handle = open(
    874                 handle,
    875                 ioargs.mode,

FileNotFoundError: [Errno 2] No such file or directory: 'AirQualityUCI.csv'

next cleaning

Question 3

Remove completely empty columns and completely empty rows.

Then display the first five rows.

df.dropna()

df = df.dropna(axis=1,how="all")
df = df.dropna(axis=0,how="all")
df.head()

Inspection of the dataset

Question 4

Display:

the shape of the DataFrame,
the total number of elements,
the column names,
the index,
the data types.

df.shape

df.size

df.columns.to_list()

df.index

df.dtypes

Question 5

Display:

the first 5 rows,
the last 5 rows,
information about the dataset using info().

df.head()

print(df.head())

display(df.head())

df.info()

Question 6

Display descriptive statistics for the numerical columns.

df.describe()

Real missing data

\[ \text{A numerical value stored in a file is not always a valid measurement.} \]

UCI states that the value -200 is used to represent missing observations.

Question 7

For each column, count how many entries are equal to -200.

Which variables contain the largest number of such values?

(df==-200).sum()

Question 8

Convert every -200 entry into NumPy’s missing-value representation np.nan.

Then count the missing values in every column.

df[df==-200]=np.nan

df.iloc[(df==-200).to_numpy()]

df.isnull().sum()

Question 9

Create a smaller DataFrame called air containing only:

Date
Time
CO(GT)
C6H6(GT)
NOx(GT)
NO2(GT)
T
RH
AH

Display its first five rows.

df.columns

air = df[
    ['Date', 'Time', 'CO(GT)',
     'C6H6(GT)', 'NOx(GT)', 'NO2(GT)' ,'T', 'RH',
     'AH']]

air.head()

Question 10

Find the number of missing observations in each column of air.

Also find the percentage of missing values in each column.

\[ \text{percentage missing} = \frac{ \text{number missing}}{ \text{number of rows}} \times 100 \]

air

(air.isnull().sum()/air.shape[0])*100

Question 11

Create a copy called air_filled.

In this copy:

replace missing Temperature T values by the mean Temperature,
replace missing Relative Humidity RH values by the mean Relative Humidity.

Check that those two columns no longer contain missing values.

air_filled = air.copy()

air_filled["T"] = air_filled["T"].fillna(air_filled["T"].mean())
air_filled["RH"] = air_filled["RH"].fillna(air_filled["RH"].mean())

air_filled['T'].isnull().sum()

air_filled['RH'].isnull().sum()

Selecting, filtering and sorting real measurements

Question 12

Display only the columns:

Date,
Time,
CO(GT),
NO2(GT).

Show the first 10 rows.

df[["Date","Time","CO(GT)", "NO2(GT)"]].head(10)

Question 13

Find all observations for which

\[ NO_2 > 200. \]

Display only:

Date,
Time,
NO2(GT).

df[df['NO2(GT)']>200][["Date","Time","NO2(GT)"]]

df.loc[df['NO2(GT)']>200, ["Date", "Time", "NO2(GT)"]]

Question 14

Find observations satisfying both

\[ CO > 5 \]

and

\[ NO_2 > 200. \]

Display Date, Time, CO and NO₂.

df.loc[(df['NO2(GT)']>200) & (df["CO(GT)"]>5), ["Date", "Time", "NO2(GT)"]]

Question 15

Find observations satisfying either

\[ CO > 5 \]

\[ NO_2 > 200. \]

How many observations satisfy this condition?

df.loc[(df['NO2(GT)']>200) | (df["CO(GT)"]>5), ["Date", "Time", "NO2(GT)"]]

Question 16

Sort the complete air DataFrame according to NO₂ concentration in descending order.

Display the 10 highest NO₂ observations.

air.sort_values("NO2(GT)", ascending=False)

Basic statistical questions

Question 17

For NO2(GT), find:

mean,
minimum,
maximum,
standard deviation,
number of non-missing observations.

air["NO2(GT)"].mean(), air["NO2(GT)"].min(),air["NO2(GT)"].std()

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
/tmp/ipykernel_609/125226296.py in <cell line: 0>()
----> 1 air["NO2(GT)"].mean(), air["NO2(GT)"].min(),air["NO2(GT)"].std()

NameError: name 'air' is not defined

air.shape[0]-air["NO2(GT)"].isnull().sum()

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
/tmp/ipykernel_609/136217374.py in <cell line: 0>()
----> 1 air.shape[0]-air["NO2(GT)"].isnull().sum()

NameError: name 'air' is not defined

Question 18

Find the mean values of:

CO,
benzene,
NOx,
NO₂,
temperature,
relative humidity.

air.columns

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
/tmp/ipykernel_609/486481595.py in <cell line: 0>()
----> 1 air.columns

NameError: name 'air' is not defined

air[['CO(GT)', 'C6H6(GT)', 'NOx(GT)', 'NO2(GT)', 'T', 'RH',
       'AH']].mean()

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
/tmp/ipykernel_609/1604038050.py in <cell line: 0>()
----> 1 air[['CO(GT)', 'C6H6(GT)', 'NOx(GT)', 'NO2(GT)', 'T', 'RH',
      2        'AH']].mean()

NameError: name 'air' is not defined

`groupby()` with a real time-series dataset

Every day contains repeated measurements at different times we can group sensor measurements by Time.

Question 19

Find the mean NO₂ concentration for every Time value.

Sort the result in descending order and display the five times with the highest mean NO₂.

(air.groupby("Time")["NO2(GT)"].mean().sort_values(ascending=False)).head(10)

air

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
/tmp/ipykernel_609/702212493.py in <cell line: 0>()
----> 1 air

NameError: name 'air' is not defined

Question 20

Find the mean CO and mean NO₂ simultaneously for every Time value.

air.groupby("Time")[["CO(GT)","NO2(GT)"]].mean()

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
/tmp/ipykernel_609/3146981782.py in <cell line: 0>()
----> 1 air.groupby("Time")[["CO(GT)","NO2(GT)"]].mean()

NameError: name 'air' is not defined

Question 21

Group the data by Date.

Find the average NO₂ concentration for each date.

Display the 10 dates having the highest average NO₂.

# do by yourself

Matplotlib for this real data

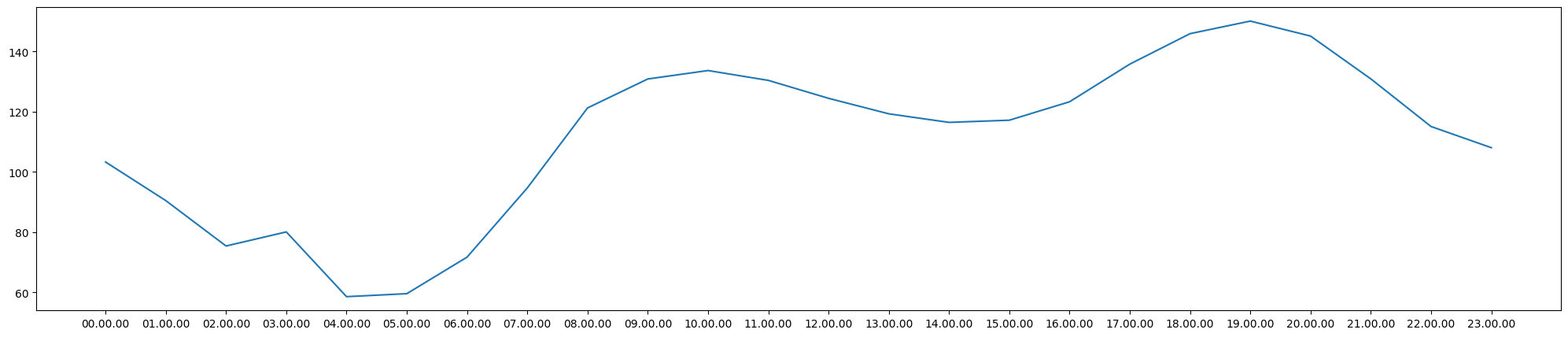

Question 22

Plot the mean NO₂ concentration against Time.

Use:

a line,
markers,
axis labels,
a title,
a grid.

dataset = air.groupby("Time")["NO2(GT)"].mean()

dataset

	NO2(GT)
Time
00.00.00	103.321429
01.00.00	90.502994
02.00.00	75.436747
03.00.00	80.115385
04.00.00	58.620482
05.00.00	59.612613
06.00.00	71.742515
07.00.00	94.709581
08.00.00	121.268293
09.00.00	130.876877
10.00.00	133.678571
11.00.00	130.413174
12.00.00	124.456716
13.00.00	119.312312
14.00.00	116.468468
15.00.00	117.191617
16.00.00	123.310448
17.00.00	135.804154
18.00.00	145.919643
19.00.00	150.091988
20.00.00	145.118694
21.00.00	130.910714
22.00.00	115.095522
23.00.00	108.071642

dtype: float64

import matplotlib.pyplot as plt
plt.figure(figsize=(25,5))
plt.plot(dataset.index.to_list(), dataset.values)

plt.plot(dataset.index.to_list(), dataset.values, '--*')
plt.xticks(rotation=90)
plt.grid()
plt.xlabel("Time")
plt.ylabel("N02")
plt.show()

max_val_dataset = dataset.max()

max_time_dataset = ((dataset.sort_values(ascending=False)).index).to_list()[0]

plt.plot(dataset.index.to_list(), dataset.values, '--*')
plt.scatter(max_time_dataset, max_val_dataset,c="red")
plt.xticks(rotation=90)
plt.grid()
plt.xlabel("Time")
plt.ylabel("N02")
plt.show()

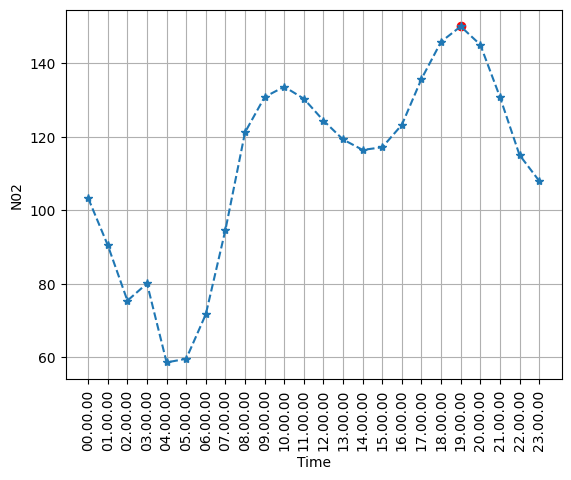

Question 23

Find the maximum value of the hourly mean NO₂ concentration and the corresponding Time.

Then mark the maximum point separately on the graph.

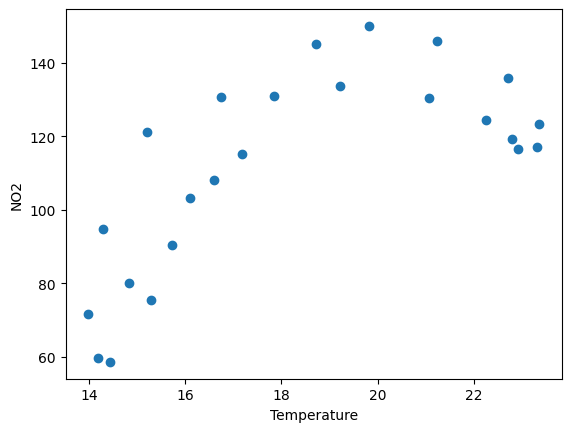

Question 24

Create a scatter plot of:

\[ \text{Temperature} \quad \text{vs} \quad NO_2. \]

df.columns

Index(['Date', 'Time', 'CO(GT)', 'PT08.S1(CO)', 'NMHC(GT)', 'C6H6(GT)',
       'PT08.S2(NMHC)', 'NOx(GT)', 'PT08.S3(NOx)', 'NO2(GT)', 'PT08.S4(NO2)',
       'PT08.S5(O3)', 'T', 'RH', 'AH'],
      dtype='object')

plt.scatter(df.groupby("Time")["T"].mean(),
            df.groupby("Time")["NO2(GT)"].mean())
plt.xlabel("Temperature")
plt.ylabel("NO2")

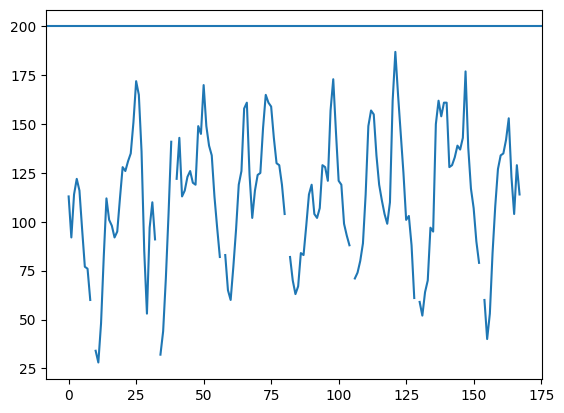

Question 25

Take the first 168 observations (approximately one week of hourly data).

Plot NO₂ concentration against observation number and draw a horizontal reference line at 200.

df.head(168)

	Date	Time	CO(GT)	PT08.S1(CO)	NMHC(GT)	C6H6(GT)	PT08.S2(NMHC)	NOx(GT)	PT08.S3(NOx)	NO2(GT)	PT08.S4(NO2)	PT08.S5(O3)	T	RH	AH
0	10/03/2004	18.00.00	2.6	1360.0	150.0	11.9	1046.0	166.0	1056.0	113.0	1692.0	1268.0	13.6	48.9	0.7578
1	10/03/2004	19.00.00	2.0	1292.0	112.0	9.4	955.0	103.0	1174.0	92.0	1559.0	972.0	13.3	47.7	0.7255
2	10/03/2004	20.00.00	2.2	1402.0	88.0	9.0	939.0	131.0	1140.0	114.0	1555.0	1074.0	11.9	54.0	0.7502
3	10/03/2004	21.00.00	2.2	1376.0	80.0	9.2	948.0	172.0	1092.0	122.0	1584.0	1203.0	11.0	60.0	0.7867
4	10/03/2004	22.00.00	1.6	1272.0	51.0	6.5	836.0	131.0	1205.0	116.0	1490.0	1110.0	11.2	59.6	0.7888
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
163	17/03/2004	13.00.00	2.8	1452.0	188.0	15.1	1152.0	204.0	861.0	153.0	1747.0	1508.0	25.6	25.6	0.8254
164	17/03/2004	14.00.00	2.6	1389.0	152.0	13.7	1108.0	161.0	887.0	123.0	1712.0	1334.0	25.9	25.9	0.8503
165	17/03/2004	15.00.00	2.0	1207.0	103.0	10.4	994.0	135.0	1013.0	104.0	1520.0	1045.0	26.8	18.7	0.6500
166	17/03/2004	16.00.00	2.9	1365.0	193.0	15.2	1154.0	186.0	940.0	129.0	1679.0	1221.0	29.3	15.8	0.6309
167	17/03/2004	17.00.00	2.5	1247.0	134.0	12.3	1060.0	147.0	1032.0	114.0	1525.0	1069.0	28.5	14.9	0.5708

168 rows × 15 columns

plt.plot(df["NO2(GT)"][0:168])
plt.axhline(200)

Pandas datas to NumPy

Question 26

Use the following variables as input features:

\[ X = [T,\ RH,\ AH,\ NOx] \]

and use

\[ y = NO_2 \]

as the target.

First remove rows containing a missing value in any of these five variables.

Then create X and y as Pandas objects.

df.columns

Index(['Date', 'Time', 'CO(GT)', 'PT08.S1(CO)', 'NMHC(GT)', 'C6H6(GT)',
       'PT08.S2(NMHC)', 'NOx(GT)', 'PT08.S3(NOx)', 'NO2(GT)', 'PT08.S4(NO2)',
       'PT08.S5(O3)', 'T', 'RH', 'AH'],
      dtype='object')

dataset = df[["T","RH","AH",'NOx(GT)',"NO2(GT)"]].dropna()
X = dataset[["T","RH","AH",'NOx(GT)']]
y = dataset["NO2(GT)"]

display(X, y)

	T	RH	AH	NOx(GT)
0	13.6	48.9	0.7578	166.0
1	13.3	47.7	0.7255	103.0
2	11.9	54.0	0.7502	131.0
3	11.0	60.0	0.7867	172.0
4	11.2	59.6	0.7888	131.0
...	...	...	...	...
9352	21.9	29.3	0.7568	472.0
9353	24.3	23.7	0.7119	353.0
9354	26.9	18.3	0.6406	293.0
9355	28.3	13.5	0.5139	235.0
9356	28.5	13.1	0.5028	265.0

7393 rows × 4 columns

	NO2(GT)
0	113.0
1	92.0
2	114.0
3	122.0
4	116.0
...	...
9352	190.0
9353	179.0
9354	175.0
9355	156.0
9356	168.0

7393 rows × 1 columns

dtype: float64

Question 27

Convert X and y into NumPy arrays.

Print:

their types,
their shapes.

X = X.to_numpy()
X

array([[ 13.6   ,  48.9   ,   0.7578, 166.    ],
       [ 13.3   ,  47.7   ,   0.7255, 103.    ],
       [ 11.9   ,  54.    ,   0.7502, 131.    ],
       ...,
       [ 26.9   ,  18.3   ,   0.6406, 293.    ],
       [ 28.3   ,  13.5   ,   0.5139, 235.    ],
       [ 28.5   ,  13.1   ,   0.5028, 265.    ]])

y = y.to_numpy()

array([113.,  92., 114., ..., 175., 156., 168.])

`merge()`

Question 28

Create:

pollution_df containing

Date,
Time,
CO(GT),
NO2(GT),

and weather_df containing

Date,
Time,
T,
RH.

Use only the first 100 rows.

Merge the two DataFrames using both Date and Time.

`concat()`

Question 29

Create:

part1 containing rows 0 to 99,
part2 containing rows 100 to 199.

Concatenate the two parts vertically.

Check the shape of the resulting DataFrame.

Save the cleaned dataset

Question 30

Save air as

AirQuality_Cleaned.csv

without writing the Pandas index to the file.

Then read the file back and display its first five rows.

air

	Date	Time	CO(GT)	C6H6(GT)	NOx(GT)	NO2(GT)	T	RH	AH
0	10/03/2004	18.00.00	2.6	11.9	166.0	113.0	13.6	48.9	0.7578
1	10/03/2004	19.00.00	2.0	9.4	103.0	92.0	13.3	47.7	0.7255
2	10/03/2004	20.00.00	2.2	9.0	131.0	114.0	11.9	54.0	0.7502
3	10/03/2004	21.00.00	2.2	9.2	172.0	122.0	11.0	60.0	0.7867
4	10/03/2004	22.00.00	1.6	6.5	131.0	116.0	11.2	59.6	0.7888
...	...	...	...	...	...	...	...	...	...
9352	04/04/2005	10.00.00	3.1	13.5	472.0	190.0	21.9	29.3	0.7568
9353	04/04/2005	11.00.00	2.4	11.4	353.0	179.0	24.3	23.7	0.7119
9354	04/04/2005	12.00.00	2.4	12.4	293.0	175.0	26.9	18.3	0.6406
9355	04/04/2005	13.00.00	2.1	9.5	235.0	156.0	28.3	13.5	0.5139
9356	04/04/2005	14.00.00	2.2	11.9	265.0	168.0	28.5	13.1	0.5028

9357 rows × 9 columns

air.to_csv("AirQuality_Cleaned.csv")

Linear Regression

We now use the cleaned UCI Air Quality data to study the relationship between:

input (x): NOx(GT)
output (y): NO2(GT)

We will do it in two ways:

From scratch using the least-squares formulas.
Using NumPy with np.polyfit().

The fitted line has the form

\[ \hat y = b_0 + b_1 x, \]

where

\(b_0\) is the intercept,
\(b_1\) is the slope,
\(\hat y\) is the value given by the fitted line.

air.columns

Index(['Date', 'Time', 'CO(GT)', 'C6H6(GT)', 'NOx(GT)', 'NO2(GT)', 'T', 'RH',
       'AH'],
      dtype='object')

Question 31

Create a new DataFrame called reg_data containing only

NOx(GT)
NO2(GT)

and remove rows containing missing values.

Display the first five rows and print the number of usable observations.

reg_data = air[["NOx(GT)","NO2(GT)"]].dropna()
reg_data

	NOx(GT)	NO2(GT)
0	166.0	113.0
1	103.0	92.0
2	131.0	114.0
3	172.0	122.0
4	131.0	116.0
...	...	...
9352	472.0	190.0
9353	353.0	179.0
9354	293.0	175.0
9355	235.0	156.0
9356	265.0	168.0

7715 rows × 2 columns

Question 32

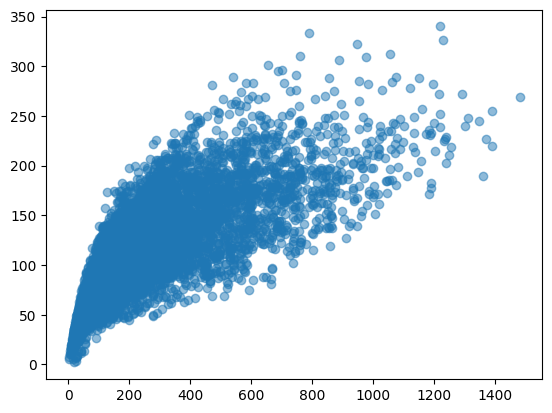

Before fitting any line, create a scatter plot of

\[ x = NO_x \qquad \text{and} \qquad y = NO_2. \]

x = reg_data["NOx(GT)"].to_numpy()
y = reg_data["NO2(GT)"].to_numpy()

plt.scatter(x,y,alpha=0.5)

Linear regression from scratch

For observed points

\[ (x_1,y_1),(x_2,y_2),\ldots,(x_n,y_n), \]

we want a line

\[ \hat y = b_0+b_1x \]

that makes the vertical errors (residuals)

\[ e_i=y_i-\hat y_i \]

as small as possible. The least-squares method chooses \(b_0\) and \(b_1\) to minimize

\[ \sum_{i=1}^{n}(y_i-\hat y_i)^2. \]

For simple linear regression,

\[ b_1= \frac{\sum (x_i-\bar{x})(y_i-\bar{y})} {\sum (x_i-\bar{x})^2}, \]

and

\[ b_0=\bar{y}-b_1\bar{x}. \]

Question 33

Convert the two columns to NumPy arrays called x and y.

Then calculate

\[ \bar{x} \quad\text{and}\quad \bar{y}. \]

x_bar = np.mean(x)
y_bar = np.mean(y)

x_bar, y_bar

(np.float64(246.93713545042127), np.float64(113.09125081011017))

Question 34

Calculate the slope \(b_1\) from scratch using

\[ b_1= \frac{\sum (x_i-\bar{x})(y_i-\bar{y})} {\sum (x_i-\bar{x})^2}. \]

b1 = np.sum((x-x_bar)*(y-y_bar))/np.sum((x-x_bar)**2)

Question 35

Calculate the intercept

\[ b_0=\bar{y}-b_1\bar{x}. \]

Then print the fitted linear-regression equation.

b0 = y_bar - b1*x_bar

b0, b1

(np.float64(70.3003999488094), np.float64(0.17328641471137532))

Question 36

For every observed \(x\)-value, calculate the corresponding value on the fitted line:

\[ \hat y=b_0+b_1x. \]

Store these values in y_hat.

y_hat = b0 + b1*x

y_hat

array([ 99.06594479,  88.14890066,  93.00092028, ..., 121.07331946,
       111.02270741, 116.22129985])

Question 37

Draw the original scatter plot and place the regression line on the same figure.

plt.scatter(x,y)
plt.plot(x,y_hat, c = "red")

What is a residual?

For each observation,

\[ \text{residual} = \text{observed value} - \text{fitted value} = y_i-\hat y_i. \]

A point lying exactly on the regression line has residual (0).

A positive residual means the observed point lies above the line.
A negative residual means it lies below the line.

Question 38

Calculate the residuals and display the first ten.

Then calculate the sum of squared errors

\[ SSE=\sum (y_i-\hat y_i)^2. \]

SSE = np.sum((y-y_hat)**2)
SSE

np.float64(7538035.274062596)

Question 39

Calculate the coefficient of determination (It is also called \(R^2\)-value-an important value in linear regression)

\[ R^2 = 1- \frac{\sum (y_i-\hat y_i)^2} {\sum (y_i-\bar y)^2}. \]

Interpretation:

\(R^2\) near 1 means the straight line explains a large proportion of the variation in \(y\).
\(R^2\) near 0 means the straight-line relationship explains little of the variation.

R2 = 1- np.sum((y-y_hat)**2)/np.sum((y-y_bar)**2)

R2

np.float64(0.582338522372956)

NumPy can calculate the coefficients of the best-fitting polynomial.

For a straight line we use degree (1):

np.polyfit(x, y, 1)

It returns the slope and intercept.

Question 40

Use np.polyfit() to calculate the regression line.

Compare its slope and intercept with the values obtained manually.

np.polyfit(x,y,1)

array([ 0.17328641, 70.30039995])

Question 41

Use the NumPy coefficients to draw the regression line again.

array([166., 103., 131., ..., 293., 235., 265.])

np.polyval(np.polyfit(x,y,1),x)

array([ 99.06594479,  88.14890066,  93.00092028, ..., 121.07331946,
       111.02270741, 116.22129985])

Question 42

Take

\[ NO_x=200. \]

Use the fitted line to calculate the corresponding model-based NO₂ value.

Then mark this point on the regression graph.

Multiple Linear Regression

In simple linear regression, we used only one input variable:

\[ NO_x \]

to predict

\[ NO_2. \]

But in real problems, an output usually depends on several variables simultaneously.

We now use

\[ X= [T,\ RH,\ AH,\ NO_x] \]

to predict

\[ y=NO_2. \]

Thus, instead of fitting a line of the form

\[ \hat y=b_0+b_1x, \]

we fit a model of the form

\[ \hat y = b_0 +b_1x_1 +b_2x_2 +b_3x_3 +b_4x_4. \]

For our air-quality data,

\[ \widehat{NO_2} = b_0 +b_1 T +b_2 RH +b_3 AH +b_4 NO_x. \]

Here:

\(b_0\) is the intercept,
\(b_1\) measures the contribution of Temperature,
\(b_2\) measures the contribution of Relative Humidity,
\(b_3\) measures the contribution of Absolute Humidity,
\(b_4\) measures the contribution of NOx.

Question 43

Create a new DataFrame called mlr_data containing only

T
RH
AH
NOx(GT)
NO2(GT)

Remove all rows containing missing values.

Question 44

Separate the data into

\[ X= [T,\ RH,\ AH,\ NO_x] \]

and

\[ y=NO_2. \]

Keep them as Pandas objects first.

Display the first five rows of \(X\) and the first five values of \(y\).

Question 45

Convert X and y into NumPy arrays called

X_np

and

y_np

respectively.

Print their shapes.

Multiple linear regression from scratch

For one observation, the model is

\[ \hat y_i = b_0 +b_1x_{i1} +b_2x_{i2} +b_3x_{i3} +b_4x_{i4}. \]

Instead of writing every equation separately, we can write all observations simultaneously using matrices. Define

\[ \mathbf{X} = \begin{bmatrix} 1 & x_{11} & x_{12} & x_{13} & x_{14}\\ 1 & x_{21} & x_{22} & x_{23} & x_{24}\\ \vdots & \vdots & \vdots & \vdots & \vdots\\ 1 & x_{n1} & x_{n2} & x_{n3} & x_{n4} \end{bmatrix} \]

and

\[ \boldsymbol{\beta} = \begin{bmatrix} b_0\\ b_1\\ b_2\\ b_3\\ b_4 \end{bmatrix}. \]

Then

\[ \hat{\mathbf y} = \mathbf X\boldsymbol{\beta}. \]

The first column consists entirely of \(1\)’s because it corresponds to the intercept \(b_0\).

Question 46

Create the design matrix by adding a column of ones to X_np. Call the resulting matrix X_design. Display its first five rows and print its shape.

The first column now corresponds to the intercept. Therefore, the columns represent

\[ [1,\ T,\ RH,\ AH,\ NO_x]. \]

Least-squares idea

As in simple linear regression, the residual for observation \(i\) is

\[ e_i=y_i-\hat y_i. \]

The least-squares method chooses the coefficients so that

\[ SSE = \sum_{i=1}^{n}(y_i-\hat y_i)^2 \]

is as small as possible. In matrix form,

\[ SSE = (\mathbf y-\mathbf X\boldsymbol{\beta})^T (\mathbf y-\mathbf X\boldsymbol{\beta}). \]

Minimizing this quantity gives the normal equations

\[ \mathbf X^T\mathbf X\boldsymbol{\beta} = \mathbf X^T\mathbf y. \]

Hence,

\[ \boldsymbol{\beta} = (\mathbf X^T\mathbf X)^{-1} \mathbf X^T\mathbf y. \]

Question 47

Calculate

\[ \mathbf X^T\mathbf X \]

and

\[ \mathbf X^T\mathbf y. \]

Print their shapes.

Question 48

Use the normal-equation formula

\[ \boldsymbol{\beta} = (\mathbf X^T\mathbf X)^{-1} \mathbf X^T\mathbf y \]

to calculate the regression coefficients.

Store them in beta.

The entries of beta are

\[ [b_0,b_1,b_2,b_3,b_4]. \]

Question 49

Separate the coefficients into

b0, b1, b2, b3, b4

and print the fitted multiple-linear-regression equation

\[ \widehat{NO_2} = b_0+b_1T+b_2RH+b_3AH+b_4NO_x. \]

Suppose the fitted model is

\[ \widehat{NO_2} = b_0+b_1T+b_2RH+b_3AH+b_4NO_x. \]

The interpretation of \(b_1\) is different from simple linear regression.

It tells us the estimated change in \(NO_2\) when \(T\) increases by one unit while the other input variables are kept fixed.

Similarly, \(b_4\) describes the estimated change associated with one unit increase in \(NO_x\), while \(T\), \(RH\), and \(AH\) are kept fixed.

Question 50

Use the fitted coefficients to calculate the predicted NO₂ value for every observation.

Use

\[ \hat{\mathbf y} = \mathbf X\boldsymbol{\beta}. \]

Store the result in y_hat_mlr.

Question 51

Calculate the residuals

\[ e_i=y_i-\hat y_i. \]

Display the first ten residuals.

Then calculate

\[ SSE = \sum_{i=1}^{n}(y_i-\hat y_i)^2. \]

Question 52

Calculate the coefficient of determination

\[ R^2 = 1- \frac{ \sum(y_i-\hat y_i)^2 }{ \sum(y_i-\bar y)^2 }. \]

Interpret the result.

The \(R^2\)-value measures the proportion of variation in NO₂ explained by the regression model. For example,

\[ R^2=0.80 \]

would mean that approximately \(80\%\) of the variation in the observed NO₂ values is explained by the variables included in the model.

Is multiple regression better than simple regression?

Previously we predicted NO₂ using only NOx. Now we are using

\[ T,\ RH,\ AH,\ NO_x. \]

To make a fair comparison, both models must be fitted using exactly the same observations.

Question 53

Using the same mlr_data, fit a simple linear regression using only

\[ NO_x \]

to predict

\[ NO_2. \]

Calculate its \(R^2\)-value and compare it with the multiple-regression \(R^2\).

An important observation is that adding more variables can increase \(R^2\). But this does not automatically mean that every added variable is useful.

Actual values versus predicted values

A useful way to inspect a regression model is to compare

\[ y \]

with

\[ \hat y. \]

For a perfect prediction,

\[ y=\hat y. \]

Therefore, all points would lie on the diagonal line

\[ y=x. \]

Question 54

Create a scatter plot with

actual NO₂ values on the horizontal axis,
predicted NO₂ values on the vertical axis.

Also draw the reference line

\[ y=x. \]

NumPy’s built-in least-squares solver

Instead of explicitly calculating

\[ (\mathbf X^T\mathbf X)^{-1}, \]

NumPy can solve the least-squares problem directly using

np.linalg.lstsq()

Question 55

Use

np.linalg.lstsq()

to calculate the regression coefficients.

Multiple linear regression using a machine-learning library

The same model can be fitted directly using LinearRegression from scikit-learn.

Question 56

Import LinearRegression from sklearn.linear_model.

Fit a multiple linear regression model using

\[ [T,\ RH,\ AH,\ NO_x] \]

to predict

\[ NO_2. \]

Print the intercept and coefficients.

The coefficients correspond to the columns

\[ [T,\ RH,\ AH,\ NO_x]. \]

Question 57

Use the fitted LinearRegression model to predict NO₂ for all observations.

Then calculate its \(R^2\)-value using

model.score(X, y)

and compare it with the \(R^2\)-value calculated manually.

Making a prediction

Suppose atmospheric conditions are

\[ T=20, \qquad RH=50, \qquad AH=1, \qquad NO_x=200. \]

The fitted regression model can be used to estimate the corresponding NO₂ concentration.

Question 58

Use the multiple linear regression model to predict NO₂ when

\[ T=20, \qquad RH=50, \qquad AH=1, \qquad NO_x=200. \]

First calculate the prediction manually from

\[ \widehat{NO_2} = b_0+b_1T+b_2RH+b_3AH+b_4NO_x. \]

Then verify the answer using model.predict().

UCI Air Quality Dataset

Obtain the real dataset

Question 1

Question 2

next cleaning

Question 3

Inspection of the dataset

Question 4

Question 5

Question 6

Real missing data

Question 7

Question 8

Question 9

Question 10

Question 11

Selecting, filtering and sorting real measurements

Question 12

Question 13

Question 14

Question 15

Question 16

Basic statistical questions

Question 17

Question 18

groupby() with a real time-series dataset

Question 19

Question 20

Question 21

Matplotlib for this real data

Question 22

Question 23

Question 24

Question 25

Pandas datas to NumPy

Question 26

Question 27

merge()

Question 28

concat()

Question 29

Save the cleaned dataset

Question 30

Linear Regression

Question 31

Question 32

Linear regression from scratch

Question 33

Question 34

Question 35

Question 36

Question 37

What is a residual?

Question 38

Question 39

Question 40

Question 41

Question 42

Multiple Linear Regression

Question 43

Question 44

Question 45

Multiple linear regression from scratch

Question 46

Least-squares idea

Question 47

Question 48

Question 49

Question 50

Question 51

Question 52

Is multiple regression better than simple regression?

Question 53

Actual values versus predicted values

Question 54

NumPy’s built-in least-squares solver

Question 55

Multiple linear regression using a machine-learning library

Question 56

Question 57

`groupby()` with a real time-series dataset

`merge()`

`concat()`
